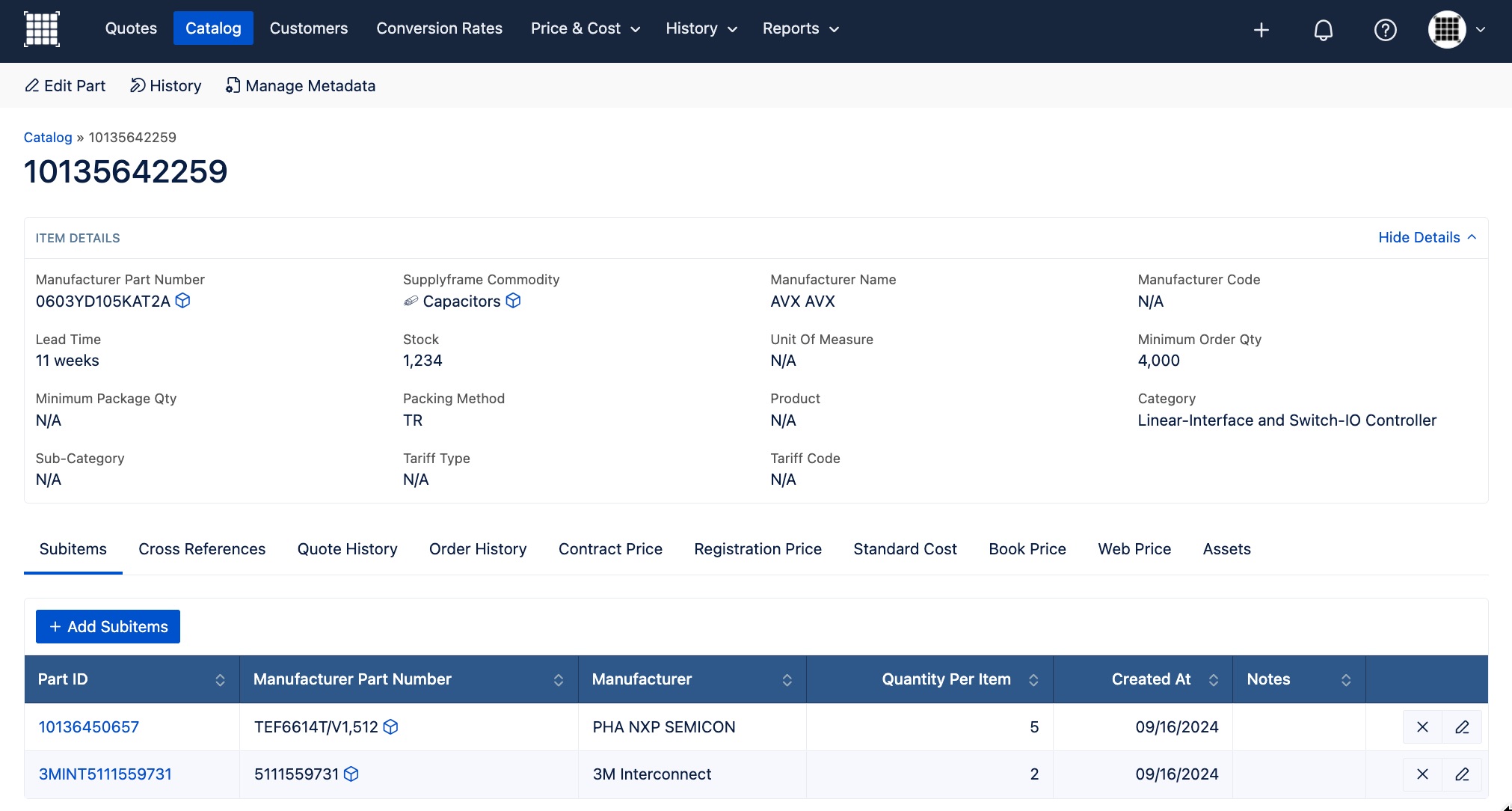

Admin users are able to create item & subitems relationships in the Item Details page in Catalog.

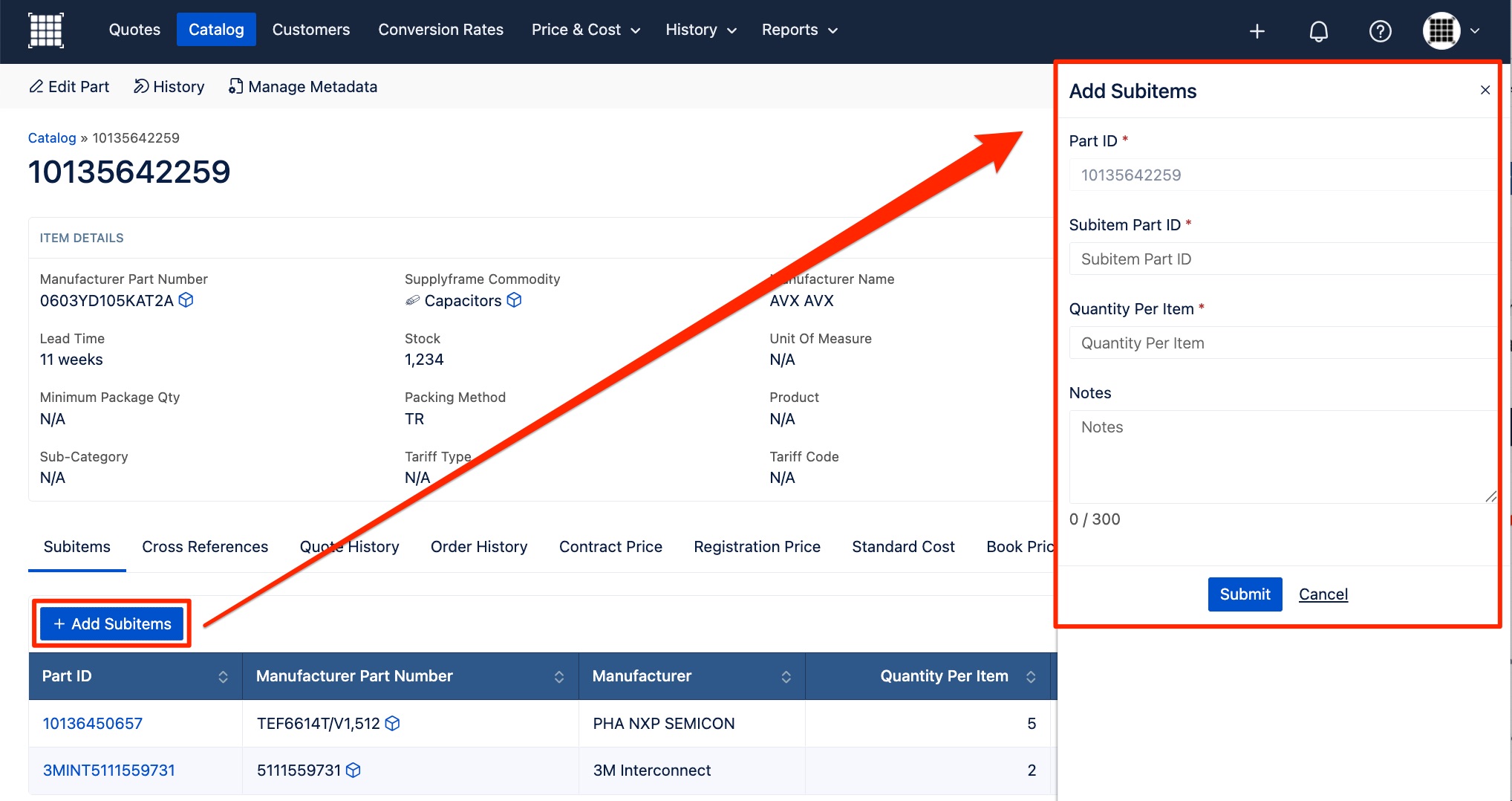

Click on Add Subitems to begin, which will open a side bar on the right. Fill out the required fields of "Part ID", “Subitem Part ID” and “Quantity Per Item.” Part ID details will populate on the bottom of the window.

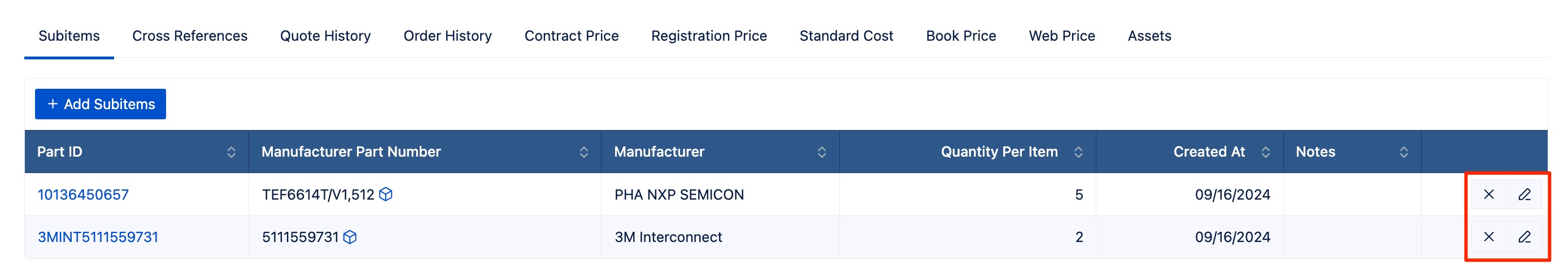

Admins can edit and remove existing subitems when necessary:
Note that items cannot be a subitem under one of its subitems. Additionally, subitems cannot contain subitems themselves. However, subitems can be subitems under multiple items.

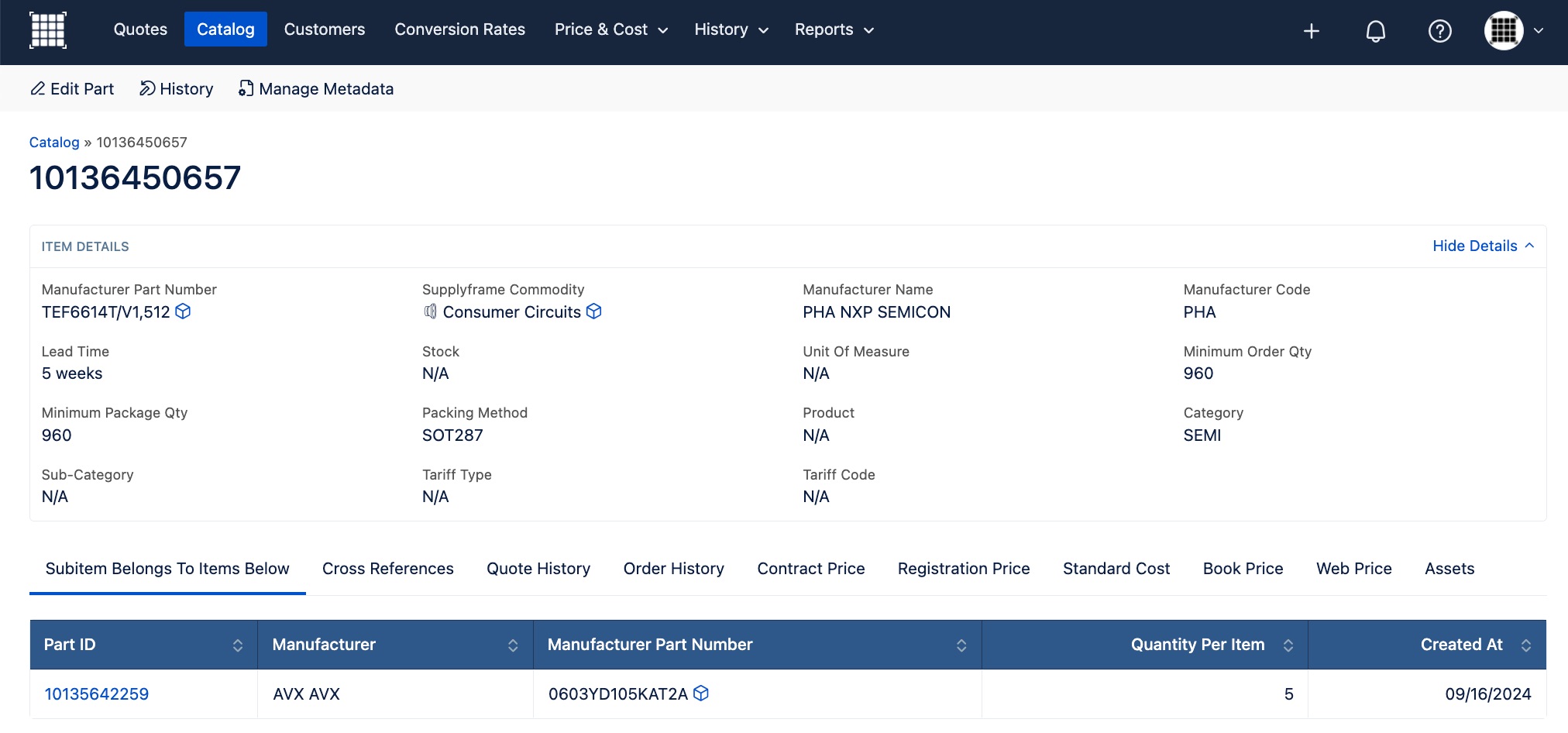

For example, for the part below, because it is used as a subitem for multiple items, its details page shows a section titled “Subitem Belongs To Items Below.” Here we display the items this part is related to, but we do not show “Add Subitems,” edit, or delete buttons.
Metadata

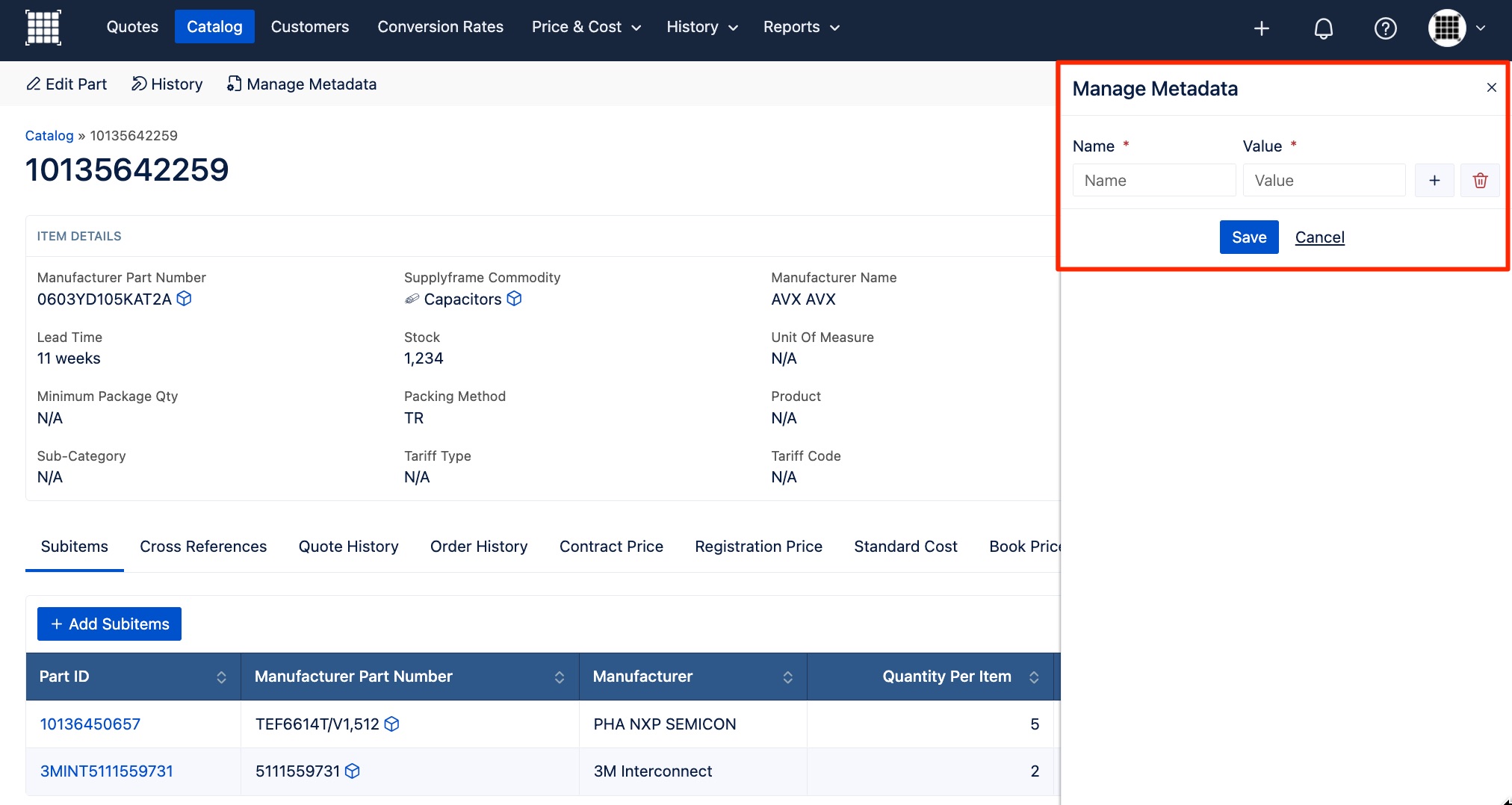

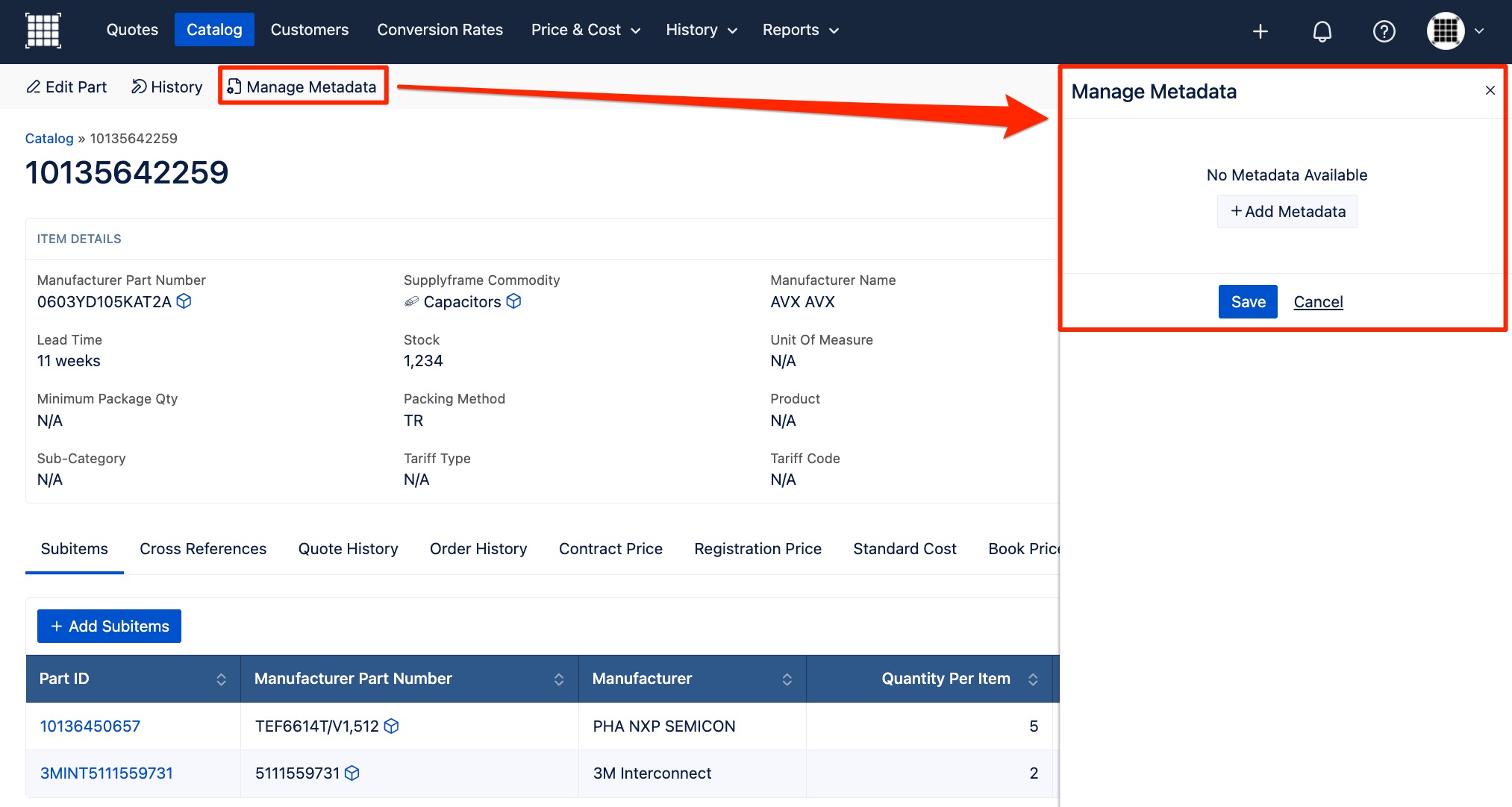

You can manage an item's Metadata using the Manage Metadata button in the top left navigation bar. When clicked, a new side panel will appear from which you can add new metadata fields or edit existing ones. Click on +Add Metadata to enter new information.
You will need to then specify its Name and Value. To specify more than one, click on the + sign on the far right to add a new row. Use the trash can when needing to delete a row. Then click on Save to finish.
Pricing
We support two pricing options for items that have subitems:
-
Sum Of Subitems
-
Normal Pricing Via Pricing Engine
Sum of Subitems is Active

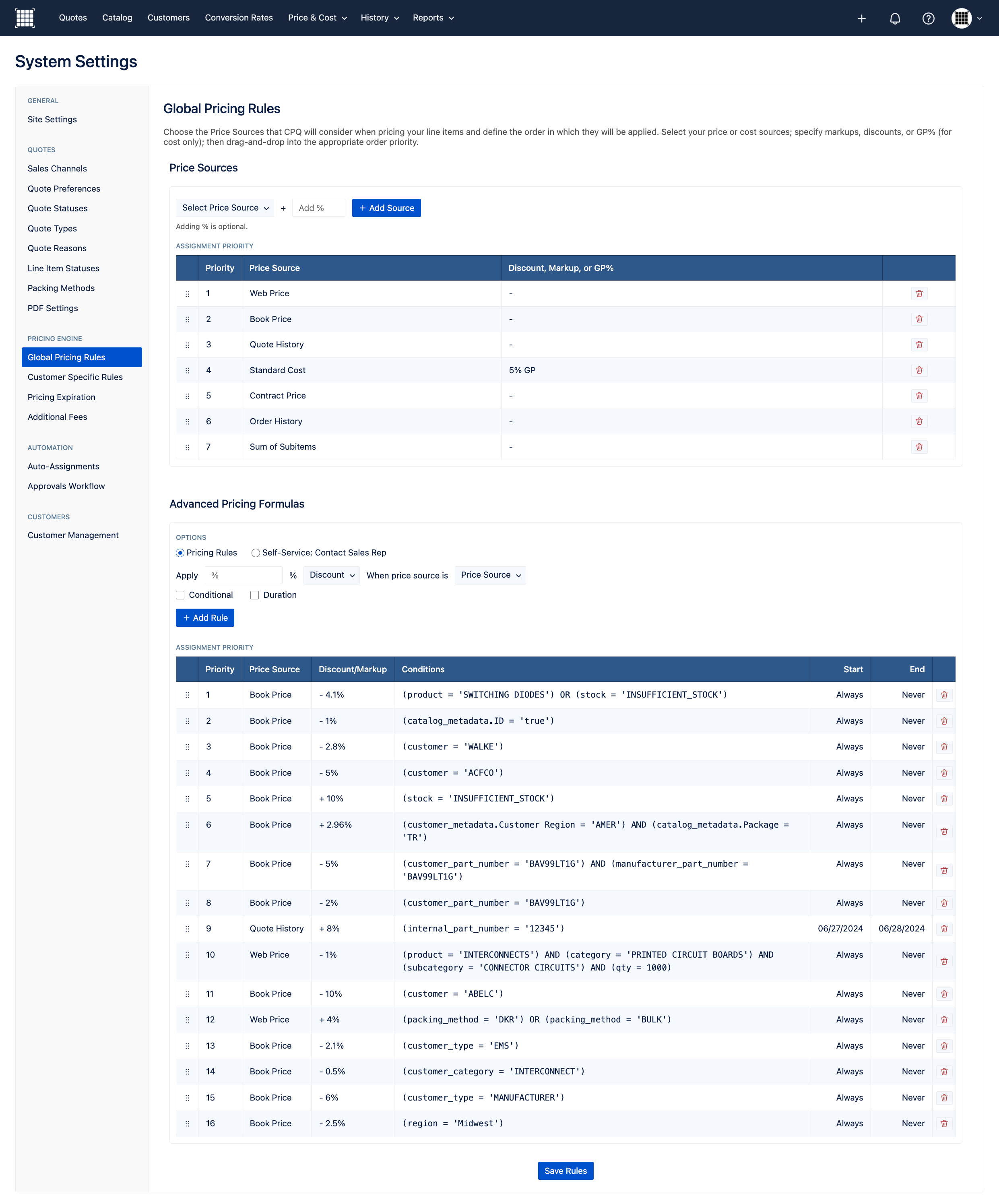

The Pricing Engine rule is available for both Global and Customer Specific Rules. When active and applied to lines with subitems, parent pricing is determined by the sum of its childrens’ pricing.
Add this new rule like you would for any other price source. However, keep the following in mind:
-
Markups and discounts cannot be used with Sum of Subitems.
-
Sum of Subitems is not available for use with Advanced Pricing Formulas.
Once "Sum of Subitems" is added, this rule operates like any other price source, where lines that do not have subitems will not qualify for this rule. In this scenario, the next applicable rule is chosen from the Pricing Engine priority list and is applied to the line item.
Sum Of Subitems Inactive
When "Sum of Subitems" is not active, CPQ will price both items and subitems normally according to the existing Global or Customer Specific Pricing Engine rules.
List View
When items are added to a quote, their related subitems will display underneath the item automatically. However, whether "Sum of Subitems" is active or inactive will determine how the item and its subitems are priced, and also dictate what can and cannot be edited.
Sum Of Subitems Is Active

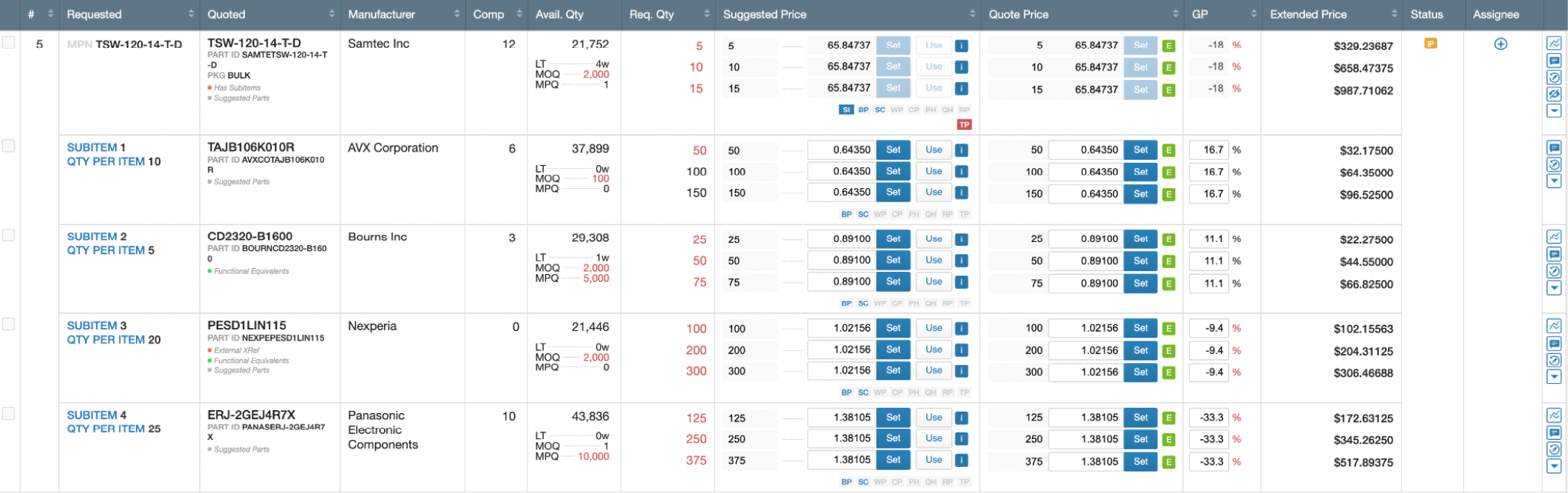

When this pricing rule is active, subitems will display in List View as follows:
Subitem pricing will be calculated based on existing Pricing Engine rules and item pricing is determined by taking the sum of each subitem.
Requested Column
Subitems
-
Subitems are clearly labeled and quantity per item is available for reference
-
Quantity per item cannot be edited in List View, only in the Item Details page in Catalog
Requested Quantity Column
Item
- Shows Requested Quantities entered by the user. Requested Quantity can be edited and subitem quantities will update below
Subitems
- Multiplies the Item Requested Quantities by “Quantity Per Item.” Subitem Requested Quantities column cannot be edited
Suggested Price Column
Item
-
Quantity in Suggested Price column cannot be edited and will reflect the same quantities as Requested Quantity
-
For each break, item Suggested Pricing is calculated by adding up each subitem Suggested Price, multiplied by the Quantity Per Item for the subitem
-
Similarly, item cost is calculated by adding up each subitem Standard Cost, multiplied by the Quantity Per Item for the subitem. Cost can be viewed by hovering over the item’s “SC” flag in the Suggested Price column
-
Item Suggested Pricing is not editable. However, subitem Suggested Prices can be changed and Item pricing will reflect these updates
-
The Suggested Price modal is available for reference
Subitems
-
Subitem Suggested Quantities cannot be changed
-
Subitem pricing can be updated and when changed, item pricing will be recalculated
-
Suggested Price modal is available for reference
Quote Price Column
Item
- Quote Quantity cannot be changed and will reflect the same quantities as Requested Quantity
- For each break, Quote Price is calculated by adding up each subitem Quote Price, multiplied by the Quantity Per Item for the subitem
- Quote Price cannot be changed. However, subitem Quote Prices can be changed and Item pricing will reflect these updates
Subitems
- Subitem Quote Quantities cannot be changed
- Subitem Quote pricing can be updated and when changed, item pricing will be recalculated
GP
Item
- Item GP% cannot be changed
Subitem
- Subitem GP% is editable
Status & Assignee
Item
- Status & Assignee can be changed for items
Subitem
- Status & Assignee cannot be changed for subitems
Sum Of Subitems Inactive

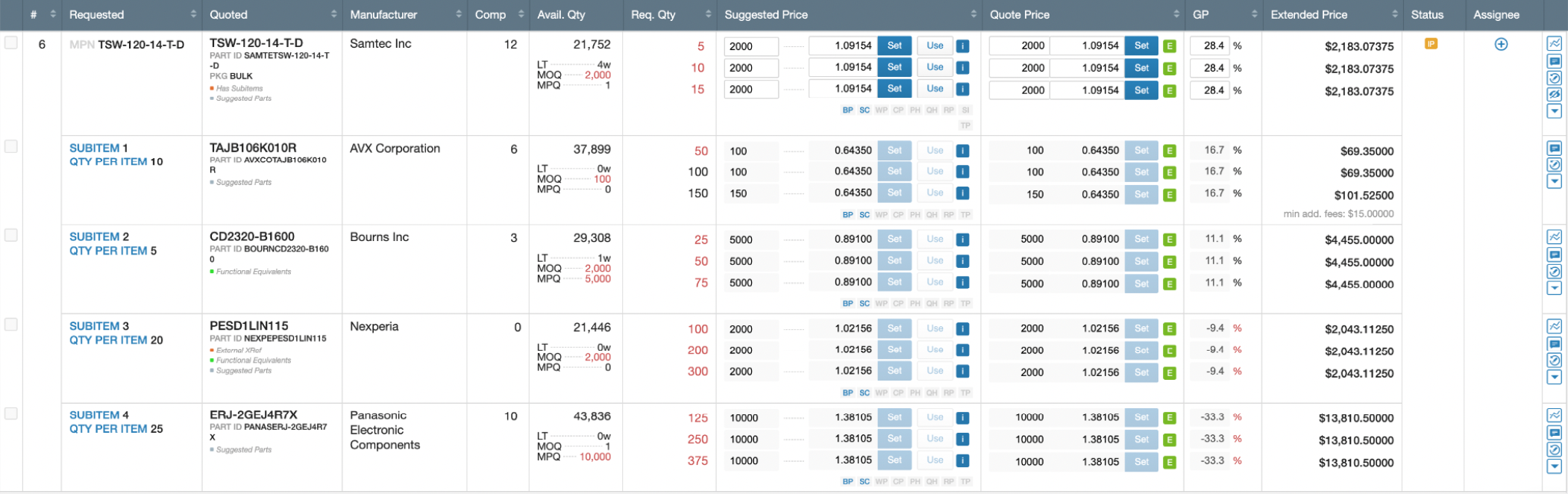

When "Sum of Subitems" is not active, subitems will display in List View as follows:
In contrast to when "Sum of Subitems" is active, both the item and all subitems will be priced individually according to existing Pricing Engine rules. Subitem pricing will have no relation to item pricing and will appear under the item for reference purposes only. As such, subitem prices will not be editable.
Requested Column
Subitems
-
Subitems are clearly labeled and quantity per item is available for reference
-
Quantity per item cannot be edited in List View, only in the Item Details page in Catalog
Requested Quantity Column
Item
- Shows Requested Quantities entered by the user. Requested Quantity can be edited and subitem quantities will update below
Subitems
- Multiplies the Item Requested Quantities by “Quantity Per Item.” Subitem Requested Quantities column cannot be edited
Suggested Price Column
Item
-
Quantity in Suggested Price column can be edited and will be rounded based on the MOQ and MPQ requirements for the part ID
-
Suggested Pricing will be calculated like any other line item that does not have subitems
-
Item Suggested Pricing is editable
-
The Suggested Price modal is available for reference
Subitems
- Subitem Suggested Quantities and pricing cannot be changed
- Suggested Price modal is available for reference Quote Price Column
Item
- Both quantity and price in Quote Price column can be edited
Subitems
- Subitem Quote Quantities and pricing cannot be changed
GP
Item
- Item GP% can be changed
Subitem
- Subitem GP% cannot be changed
Status & Assignee
Item
- Status & Assignee can be changed for items
Subitem
- Status & Assignee cannot be changed for subitems
Alerts
If an error occurs, an alert will be shown in the Requested Quantity column with details. Some of the reasons items may be invalid include:
- Not enough Available Qty for one or more subitems
- No pricing available for one or more subitems
- No cost available for one or more subitems
- One or more subitems don’t belong in item
